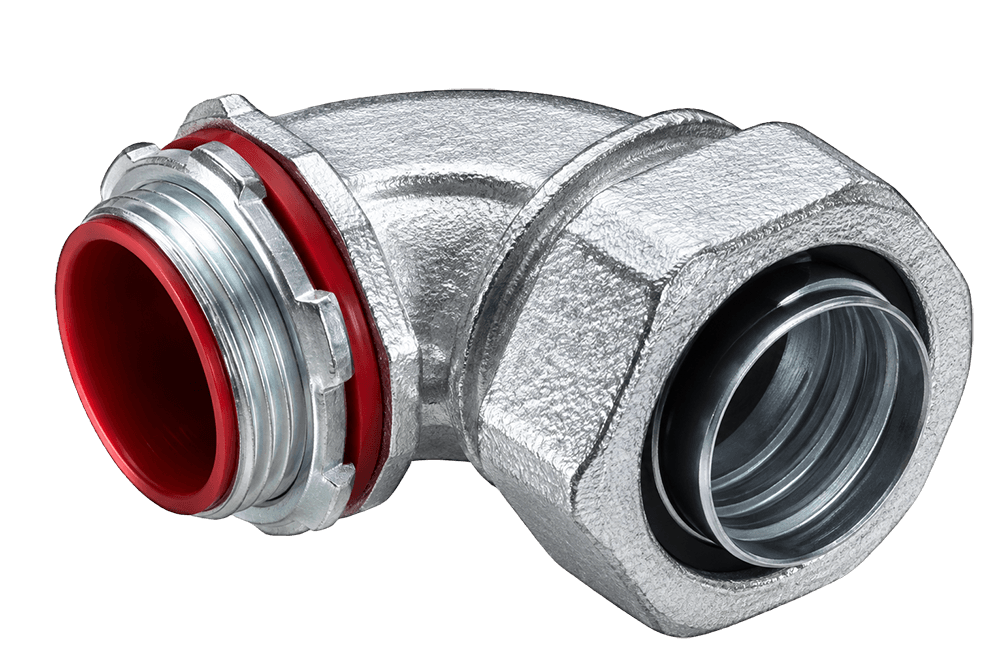

90° With Insulated Throat - Malleable Iro
Applications
- To secure, ground and seal liquidtight conduit to a box or enclosure
- UL listed liquidtight flexible metal conduit fittings are suitable for use in the following hazardous locations under: NEC 501-4(b), 502-4(a), (2)503-3(a) Class 1 Div.2, Class II Div.1 and 2, Class III Div.1 and 2 and are suitable for grounding in sizes 3/8" through 1-1/2" under NEC 351-I
Features
- Liquidtight, raintight, oiltight
- Suitable for wet location use
- Tapered threaded male hub NPT
- Insulated throat protects conductors from abrasion damage
- Compact slim diameter with small turning radius
- Zinc electro plated for excellent durability
- Standard Material
- Malleable iron / Steel locknut
- Standard Finish
- Zinc plated
1 / 3
Specifications
| Catalog Number | Trade Size | Ship Case | A | B | C | Request a quote |
|---|---|---|---|---|---|---|
| LI9038 | 3/8" 1/2" KO | 100 | 1.18 | 1.96 | 2.47 | Inquire about LI9038 |
| LI9050 | 1/2" | 100 | 1.36 | 2.10 | 2.54 |
