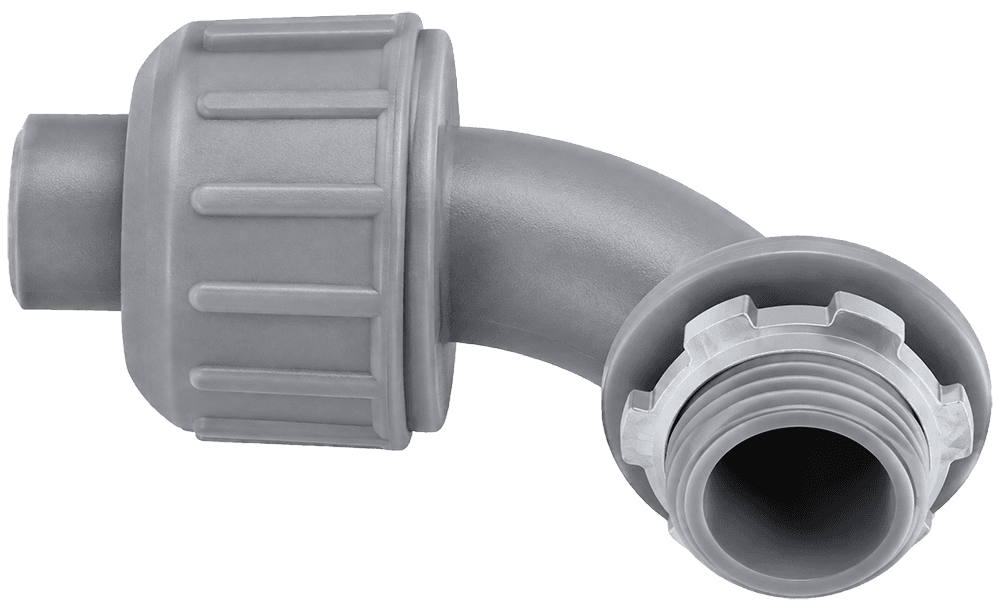

Gray - Nylon
Applications
- For use in wet and dry locations
Features
- Liquidtight, raintight, oiltight
- For flexible non-metallic liquidtight tubing
- Easy assembly avoids having to remove the compression nut
- 90° angle
- Gray
- Standard Material
- 6/6 Nylon
1 / 3
Specifications
| Catalog Number | Trade Size | Ship Case | A | B | C | Request a quote |
|---|---|---|---|---|---|---|
| NM9038 | 3/8" 1/2" KO | 100 | 2.56 | 2.14 | 1.09 | Inquire about NM9038 |
| NM9050 | 1/2" | 100 | 2.56 | 2.14 | 1.09 | Inquire about NM9050 |
| NM9075 | 3/4" | 100 | 2.84 | 2.38 | 1.30 | Inquire about NM9075 |
| NM90100 | 1" | 50 | 2.25 | 2.81 | 1.50 | Inquire about NM90100 |
| NM90125 | 1-1/4" |
